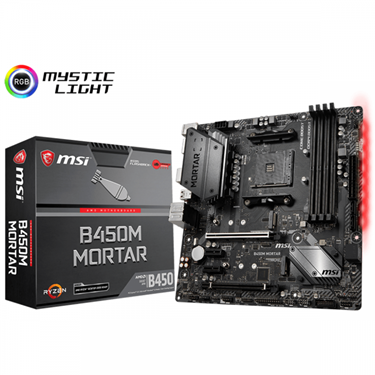

MSI AMD RYZEN B450M MORTAR MAX AM4 MicroATX Motherboard

Compare

Features:

  • 1x PCIe 3.0 x16 (x16) for high-end graphics cards
  • 6x USB 3.1 / 8x USB 2.0
  • 1 x M.2 slot (M2_2, Key M) (2280)/ 4x SATA 6Gb/s
  • DDR4-RAM up to 3.466 MHz via OC
  • 1 x DisplayPort / 1 x HDMI

R2,359.00 Incl. Vat

SKU: B450M MORTAR MAX Category: Tags: , , , , , , , ,

Description


Blast Away the Competition with the MSI B450M Mortar MAX

Micro ATX MSI Motherboard built to fit any gaming PCDominate the battlefield with this B450M from MSI. The B450M Mortar MAX is equipped to take on even the most capable of competition. Ryzen powered, this board features certain aspect to make your gaming experience easier and more enjoyable from an IO section for gaming device ports to gaming optimized audio. It boasts leading heatsink design for enhanced cooling, both Type-C and Type-A connections as well as protection against VGA cards bending and EMI. Simply change the appearance of your system in 1 second with mystic light. Simply use a USB key to flash any BIOS within seconds using flash BIOS button all without installing a CPU, memory or graphics card.

Please note: Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4.

Core Specifications
Edition B450M MORTAR MAX
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B450
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 – 1866
  • DDR4 – 2133
  • DDR4 – 2400
  • DDR4 – 2666
  • DDR4 – 2800(OC)
  • DDR4 – 2933(OC)
  • DDR4 – 3000(OC)
  • DDR4 – 3066(OC)
  • DDR4 – 3200(OC)
  • DDR4 – 3466(OC)
  • DDR4 – 3733(OC)
  • DDR4 – 3866(OC)
  • DDR4 – 4000(OC)
  • DDR4 – 4133(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen2
  • 1 x M.2, 22-42/60/80, PCIe Gen3/SATA
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~3 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 2 x 5050 RGB LED 12V connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Parallel Port (LPT) Header
  • 4 x SATA III – 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H-CG (Gigabit LAN)
Rear I/O Connectors
  • 2 x Audio I/O
  • 1 x DisplayPort 1.2
  • 1 x Flash BIOS Button
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 244 mm
