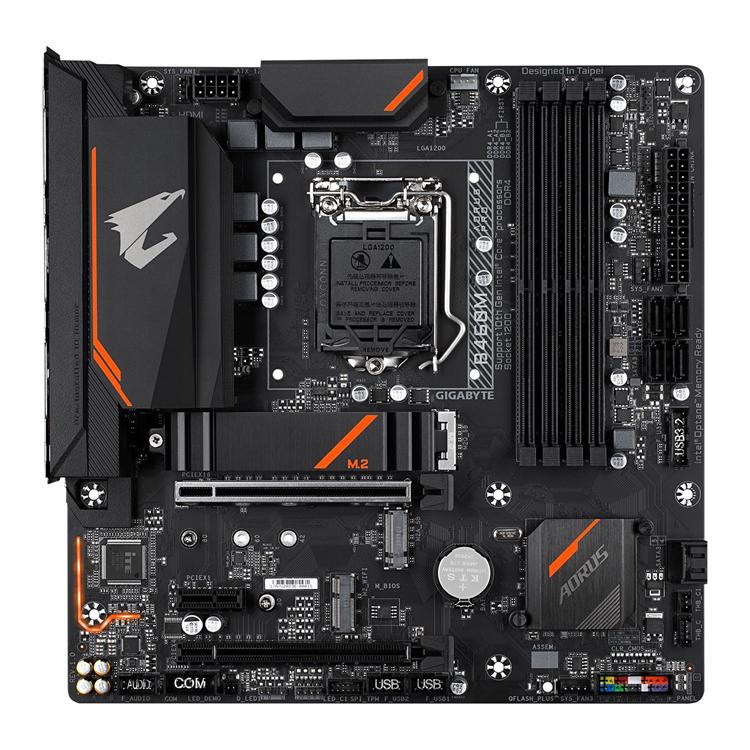

GIGABYTE B460M AORUS PRO MOTHERBOARD

Key Features

  • Intel Socket 1200
  • Intel B460 Chipset
  • 4x DDR4 Slots – up to 128GB
  • 6x SATA 6Gb/s | 2x M.2 Slot
  • 1 x DisplayPort | 1 x HDMI Port | 1 x DVI-D Port
  • Micro-ATX Form Factor

R2,779.00 Incl. Vat

SKU: B460M AORUS PRO Category: Tags: , , , ,

Description

Gigabyte B460M AORUS PRO Motherboard

Meet the Gigabyte B460M AORUS PRO Motherboard, with RGB Fusion 2.0 with Digital LEDs, Intel GbE LAN with cFosSpeed, Advanced Thermal Design with Enlarged Heatsink, USB 3.2 Gen1 Type-C , Dual M.2 Slots and more.

Direct Power Design

Gigabyte’s 400 series motherboards use a 4+2 Hybrid digital PWM + Lower RDS(on) MOSFETs design – this supports the latest Intel Core CPUs by offering epic precision in delivering power to the motherboard’s most power-hungry components as well as delivering enhanced system performance and ultimate hardware scalability.

Advanced Thermal Solution

The B450M Aorus Pro features advanced thermal technologies, such as enlarged MOSFET heatsinks, M.2 thermal guard, and 5 W/mK LAIRD Thermal Conductivity Pad. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Advanced Thermal Solution

Thanks to Smart Fan 5, users can ensures that their gaming PC maintains its performance whilst staying cool. Users can interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Fan Stop allows you to achieve fan silence- map any fan to stop completely when temperatures drop below a specific threshold.

Next Generation Connectivity

Network latency is improved thanks to Intel® GbE LAN features cFosSpeed, a network traffic management application which also maintains low ping times to deliver better responsiveness in crowded LAN environments. WIFI module Upgrade kit offers an easy way to upgrade WIFI Upgradeable motherboards with new and faster Gigabit WIFI connectivity without having to upgrade to a whole new system.

Aorus Style

Users can adapt their PC to their style thanks to full RGB support and a redesigned RGB Fusion 2.0 application. Enjoy complete control over the LEDs which surround the motherboard.

Core Specifications
Edition B460M Aorus Pro
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B460
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 – 2133
  • DDR4 – 2400
  • DDR4 – 2666
  • DDR4 – 2933
Max. Memory Capacity 1280MB
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Wi-Fi Module Slot
  • 1 x M.2, 22-42/60/80/110, PCIe
  • 1 x M.2, 22-42/60/80/110, PCIe/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 2 x RGB Header
  • 1 x Serial (COM) Header
  • 3 x System Fan header
  • 2 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)

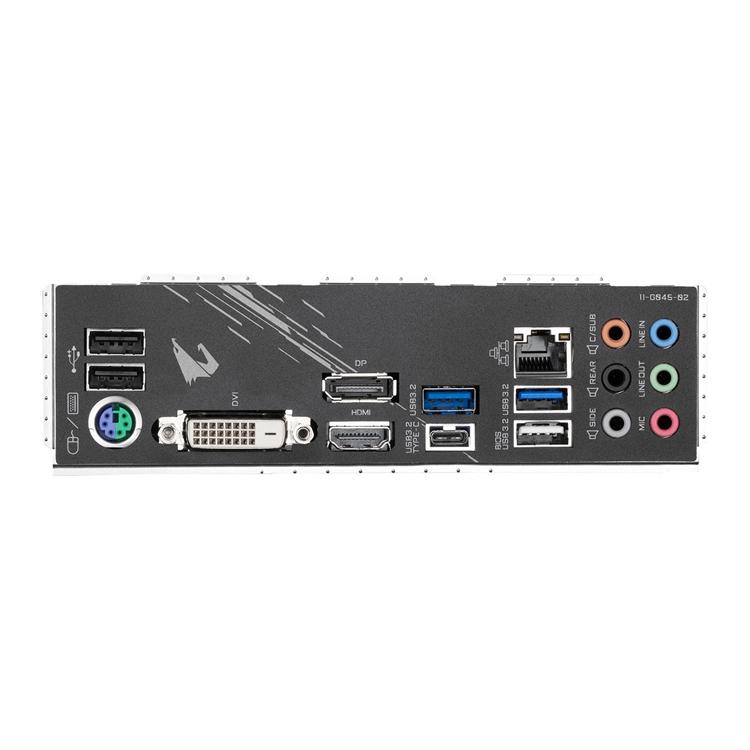

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x Side Speaker Out
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
