CORSAIR CRYSTAL 570X TEMPERED GLASS RGB GAMING CASE

Key Features

  • Mid Tower
  • Tempered Glass Side Panel
  • ATX | Micro-ATX | Mini-ITX
  • Radiator Support: 120/240/360mm
  • GPU Max Length: 370mm
  • CPU Cooler Height Limit: 170mm
  • Fans Included: 3 x 120mm RGB
  • Fan Support: 120/140mm
  • USB Ports: 2 x USB 3.0
  • Lighting: RGB

R3,621.00 Incl. Vat

SKU: CH-C570XRGB Category: Tags: , , , , , ,

Description

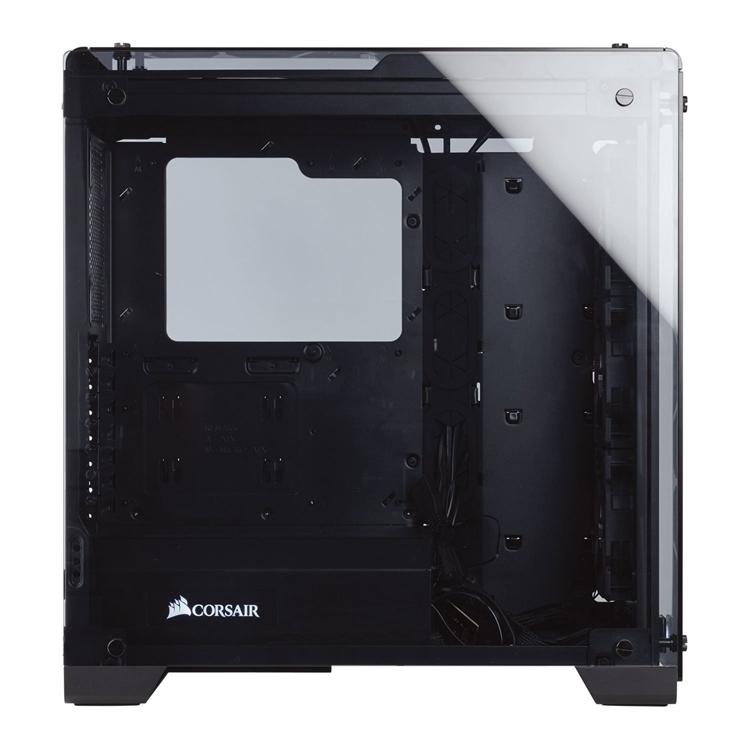

Corsair Crystal Series 570X RGB Tempered Glass Mid Tower Case

CC-9011098-WW

Clearly Superior

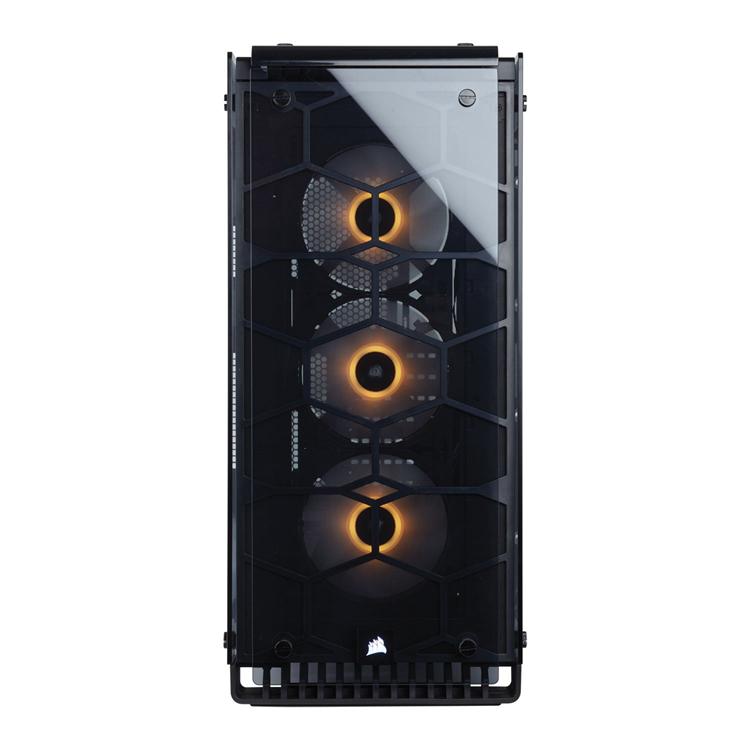

With immaculate tempered glass enclosing the entire chassis, every component of your build is on display for all to see, including three vivid SP120 RGB LED fans and a built-in LED controller.

The Final Frontier

Room for up to 6 case fans, and fully compatible with 360mm, 280mm, and 120mm radiators. Removable fan trays in the front and top of the chassis allows for additional space or mounting cooling outside of the chassis.

Direct Airflow Path

Drive cages are moved up and out of the path of cool air from the front intake fans and high-temperature components.

Minimal setup

With tool-free drive installation and three-point dust filter access, the CORSAIR Crystal 570X is easy to build — and even easier to keep clean. You’ll spend less time on setup and maintenance, and more time enjoying your PC.

Specifications

  • Warranty: Two years
  • Weight: 10.9kg
  • Case Form Factor: Mid-Tower
  • Dimensions: 480mm x 234mm x 512mm
  • Case Motherboard Support: Mini-ITX, MicroATX, ATX (Up to 272mm)
  • Maximum GPU Length: 370mm
  • Maximum CPU Cooler Height: 170mm
  • Maximum PSU Length: 225mm
  • Case Expansion Slots: 7
  • Case Drive Bays: (x2) 3.5in, (x2) 2.5in
  • Case Material: Steel
  • Case Power Supply: ATX (not included)
  • External Connections: (x2) USB 3.0, (x1) Headphone Port, (x1) Microphone Port
  • Fan Mount Locations: Front: (x3) 120mm or (x2) 140mm, Top: (x2) 120/140mm, Rear: (x1) 120mm
  • Fans Included: Front: (x3) 120mm RGB LED
  • Radiator Mount Locations: Front: 120/240/280/360mm, Top: 240mm, Rear: 120mm
  • Compatible Corsair Liquid Coolers: H55, H60, H75, H80i, H90, H100i, H105, H110
Core Chassis Specifications
Case Edition Crystal 570X RGB
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX (Upto 272mm)
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x 3-Button RGB Controller
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Reset Button
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 2 x 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 4 x 120/140mm
  • 1 x 120mm
Fans Included 3 x 120mm w/ RGB LEDs
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/240/280/360mm
Top Radiator Compatibility 1 x 120/240mm
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 170 mm
Max GPU Card Length 370 mm
Cable Routing Space
Side Panels
Window/s Yes
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length 225 mm
Chassis Physical Specifications
Colour Black
Chassis Contruction Materials Steel / Tempered Glass
Dimensions 234 x 512 x 480 (WxHxD mm)
Weight 10.9 kg (Approx)
