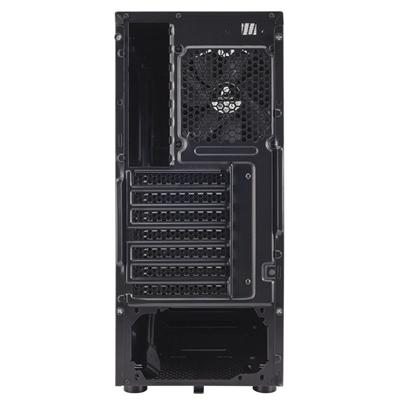

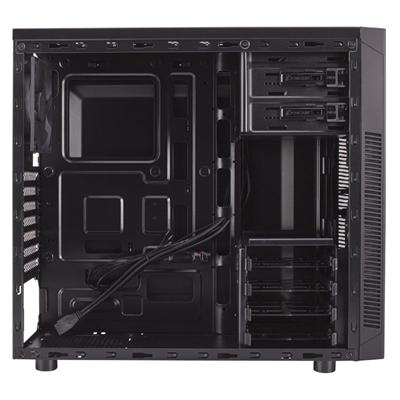

CORSAIR CARBIDE 100R MID TOWER GAMING CASE

Description

Corsair Carbide 100R with Window – Mid-Tower Gaming Case

Carbide 100 Series Mid-Tower PC Case

The Carbide 100R is a Mid Tower case from Corsair that adds to the family of 100 Series cases. The case has all the versatility that all serious PC builders crave. The clean and modern exterior design is something that all users can agree with; the tool free access to the interior allows you to access your components for maintenance and cleaning very easily. The ranges of cooling options are all available to the builder.

Case Accessibility

Easy to Build, Hard to Beat

It’s the performance PC platform in stealth mode. With a mesh-free front panel, flush-mounted side panel window and clean lines, the 100R is both professional enough for the office and customizable enough for any home PC build. The simplicity begins with tool-free 3.5” and 5.25” drive installation, and all four hard drive trays provide solid-state drive support so you can mix and match to fit your needs. On the outside, dual USB 3.0 front panel ports give you quick and easy access to the latest high-speed portable hard drives and flash drives.

Direct Airflow Technology

Corsair Case Cooling

Five internal fan mounts let you customize your cooling to match your build. We’ll get you started with one included 120mm fan. The case is designed to draw airflow directly to the GPU to help ensure that you and your graphics card will both keep your cool during intense gaming sessions.

Corsair Fans

One Included Corsair Series Fans

For maximum airflow the 100R comes with one 120mm corsair fan included, this allows for the hot air generated from your PC’s components to be directed out of the case.

Liquid Cooling Capable

Watercool Your Graphics Card and Processor

The Carbide 100R has room at for radiators, allowing you to quiet down your GPU and CPU with liquid coolers, this also allows you to get better overclocks out of your components for better quality gaming.

The length for the radiators that are compatable with the 100R case are as follows:
H55, H60, H75, H80i

Core Chassis Specifications
Case Edition	Carbide 100R
Case Form Factor	Mid Tower
Motherboard Form Factor	ATX MicroATX Mini-ITX

I/O, Bays & Expansion
Front/Side/Top Panel I/O	1 x Headphone Out 1 x Mic In 2 x USB 3.0
Drive Bays	4 x 2.5"/ 3.5" Internal 2 x 5.25" External
Standard Expansion Slots	7
Vertical Expansion Slots

Fans & Filters
Fan Bays	2 x 120/140mm 3 x 120mm
Fans Included	1 x 120mm
Fan Controller/Hub
Dust Filters

Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility	1 x 120mm
Side Radiator Compatibility

Clearances
Max CPU Cooler Height	150 mm
Max GPU Card Length	414 (Top Slots) / 275 (Lower Slots) mm
Cable Routing Space

Side Panels
Window/s	Yes
Window Configuration
Window Construction

LED Lighting Functionality
LED Lighting	No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control

Power Supply Compatibility
PSU Included	No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support	ATX
PSU Mounting Location
Max PSU Length	260 mm

Chassis Physical Specifications
Colour	Black
Chassis Contruction Materials	Steel
Dimensions	200 x 471 x 430 (WxHxD mm)
Weight	4.8 kg (Approx)
