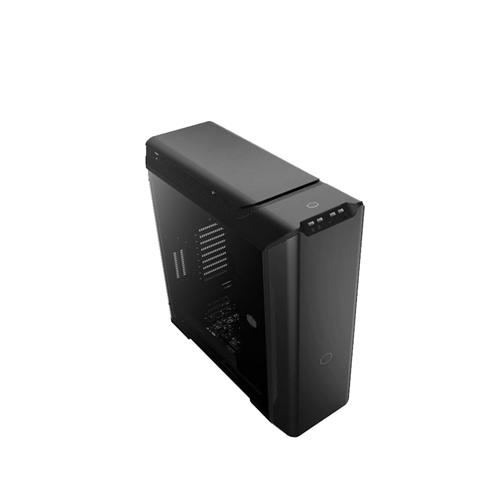

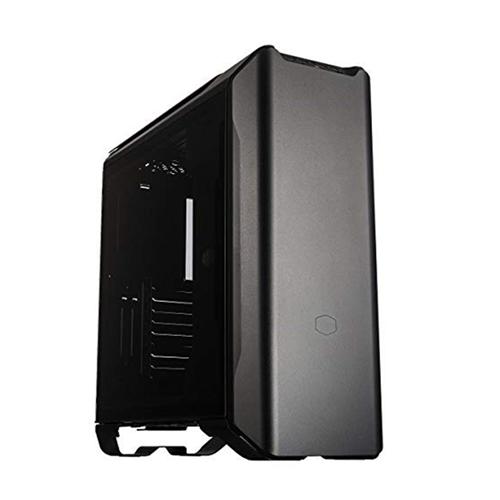

MasterCase SL600M Tempered Glass Mid-Tower PC Case from Cooler Master
THE ENTHUSIASTS CHOICE FOR PERFORMANCE AND COOLING
Regarded as one of the highest thermal performing cases for your high-end graphics cards, the MasterCase SL600M makes a return with a whole-new black coat that’s been applied to Cooler Master’s award-winning design. The SL600M Black Edition transforms the belief that airflow must follow front-to-back conventions. With two 200mm fans mounted on the bottom, airflow travels up and out of the chassis to aid the natural rising of heat. This results in a high degree of fantastic performance whilst keeping your gaming PC running as quietly as possible. Designed with sophistication and engineered to perform, the MasterCase SL600M Black Edition is both a technological marvel and aesthetically striking.
The SL in a Darker Finish
POWDER-COATED ALUMINUM PANELSBetter suited to its covert personality, a jet-black powder coat embellishes the aluminum panels and internal layout.
A New Way of Cooling
VERTICAL LAYOUT & CHIMNEY EFFECTFresh, cool air is taken from the bottom of the case, assisting the natural rise of hot air out of the top of the case for proficient thermal performance.
Silent Performance with Effective Airflow
ACOUSTIC NOISE REDUCTIONSince the path of airflow is from bottom to top, the front and rear panels of the case act as a shield against noise. From the front, noise is shielded from escaping toward the user, while the rear panel prevents noise from bouncing off neighboring walls, minimizing acoustics.
Set your Fans to Suit your Needs
OPERATIONAL NOISE REDUCTIONNoise is further reduced by large, low RPM fans in comparison to smaller, conventional fans. With efficient case cooling, there is an increased potential for system fans to operate quieter in turn. For maximized noise reduction, the dual 200mm fans can be set to their lowest RPM setting via the I/O Panel.
Build your PC with Unbeatable Versatility
ROTATABLE PCI BRACKETThe entire window of the PCI Bracket is rotatable. This allows the unique option of mounting multiple graphics cards vertically and with more clearance away from the glass side panel, increasing the amount of air available to vertical graphics card(s).
*Riser cable sold separately
Apply any Component with Ease
VERSATILE STORAGE BRACKETSThe SL600M features versatile brackets that can mount an SSD, HDD, or a pump/reservoir for liquid cooling. Brackets can be placed in multiple positions inside the case, including the bottom radiator bracket and behind the front panel.
Extensive Connectivity Options
PROXIMITY LIGHTING & I/O PANELA proximity sensor triggers the USB lighting for easy access in the dark. The panel will stay temporarily lit before turning off automatically. Furthermore, the I/O Panel features a USB 3.1 (Gen 2) Type-C port, four additional USB ports, a PWM fan speed slider, a headset jack (audio + mic), and a dedicated microphone jack.
Control the Airflow in your PC
ADJUSTABLE TOP VENTILATIONThe aluminum top panel can be adjusted to 3 different positions. The panel can either stay flush against the mesh, raised, or completely removed.
Space for your High-End Parts
COMPONENT CLEARANCES1. CPU Cooler: 191mm.
2. Power Supply: 200mm.
3. Graphics Card: 318mm.
All the Storage you’ll Ever Need
STORAGE SUPPORT• 3.5″ / 2.5″ Combo x 4.
• 2.5″ SSD x 4.
Flexible Support for a Wealth of Cooling Options
Fan supportTop: 120mm x 3
140 / 200mm* x 2
*200mm Mounting Hole Spacing 179 x 125 w/ up to 25mm thickness.
Bottom: 120mm x 3
140 / 200mm* x 2
*200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness
RADIATOR SUPPORTTop: 120mm, 140mm, 240mm, 280mm, 360mm.
(maximum thickness clearance 43mm)
Bottom: 120mm, 140mm, 240mm, 280mm, 360mm.
(max. thickness clearance 72mm when GFX is installed in the vertical position)
*E-ATX up to 12″ x 10.7″, will limit cable management features.
|Dimension||544 x 242 x 573mm|
|Materials||Steel, Aluminum, Tempered Glass|
|Motherboard Support||Mini-ITX, Micro-ATX, ATX (E-ATX* Support Up to 12″ x 10.7″, Will Limit Cable Management Features)|
|Front I/O||2x USB 2.0 Type-A|
|2x USB 3.0 Type-A|
|1x USB 3.1 Type-C|
|1x Audio In/Out|
|Side Window||Tempered Glass|
|PCI Slots & Drive Bays|
|Expansion Slots||9 2 (Support Vertical Graphics Card Installation)|
|Internal Drive Bays||Max: 4x 2.5″|
|Max: 4x 3.5″|
|Pre-installed Fans – Bottom||2x 200mm PWM Fan (Speed: 400~800RPM / Connector: 4Pin)|
|Bottom||3x 120 / 2x 140 /2x 200mm|
|Top||3x 120 /2x 140 /2x 200mm|
|CPU Cooler||Up to 191mm|
|Power Supply||Front Top Mount, ATX|
|Warranty||2 Year Warranty|
