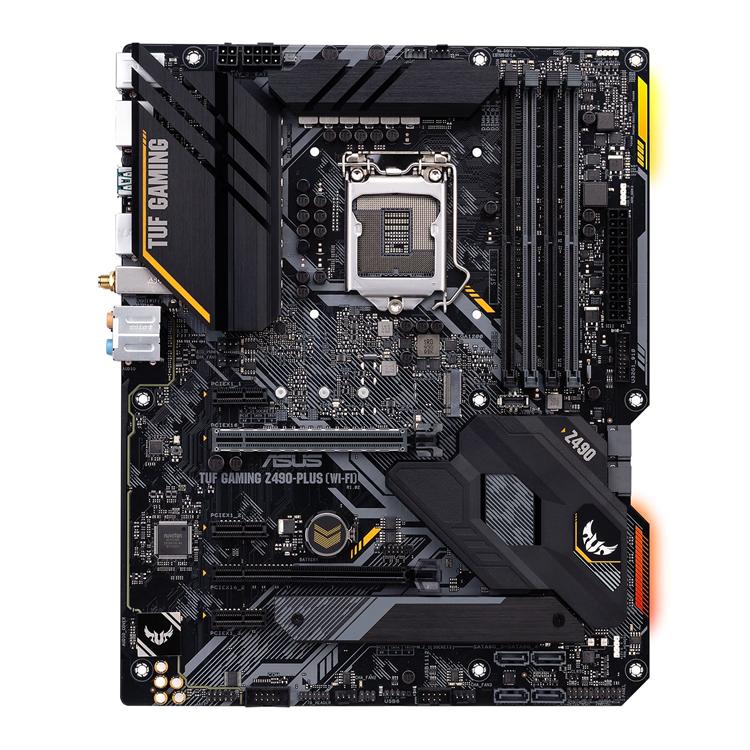

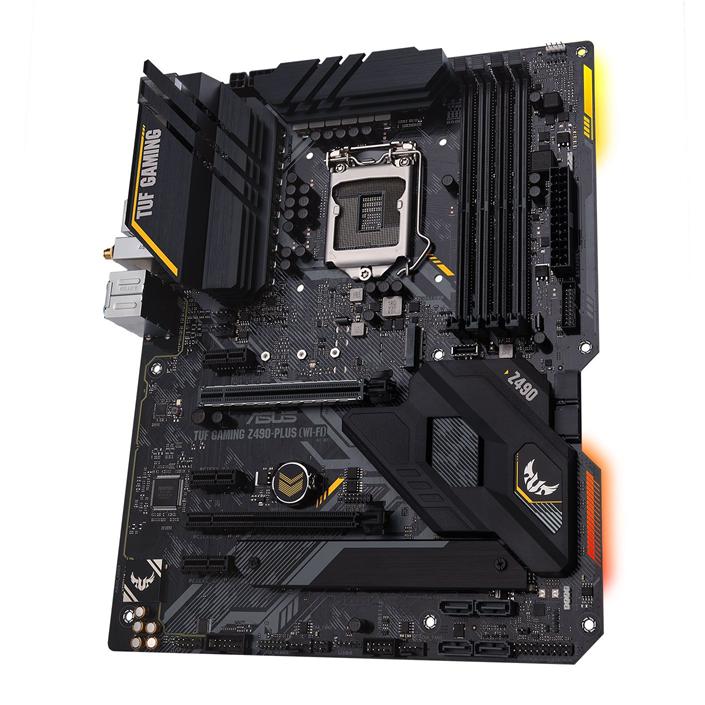

The ASUS TUF GAMING Z490-PLUS (WI-FI) Motherboard distills essential elements of the latest Intel platform and merges them with game-ready features alongside provden durability. With military grade components and an upgraded powersolution, this motherboard delivers epic performance and unwavering stability.
Cooling
Every motherboard needs epic cooling, which is why the ASUS TUF GAMING Z490-PLUS (WI-FI) Motherboard features a large, high-mass heatsink, high quality thermal pads and an M.2 heatsink to keep the M.2 SSD at optimal temperatures. Control fans via Fan Xpert 4 utility or via ASUS UEFI BIOS.
TUF Protection
TUF Protection methods keep your motherboard stable and prolongs the life of each components. From SafeSlot to TUF LANGuard, these military-grade innovations protect the motherboard and add strength. TUF Gaming motherboards also have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels.
Core Specifications
Edition
TUF GAMING Z490-PLUS (Wi-Fi)
Form Factor
ATX
CPU Socket
1200
Chipset
Intel Z490
RAM Memory Support
Memory Type
DDR4
Memory Channel
Dual (2)
Memory Type (ECC)
Non-ECC
Memory Type (R/U)
UDIMM (Unbuffered)
Memory Speed (Mhz)
DDR4 – 2133
DDR4 – 2400
DDR4 – 2666
DDR4 – 2800(OC)
DDR4 – 2933(OC)
DDR4 – 3000(OC)
DDR4 – 3200(OC)
DDR4 – 3333(OC)
DDR4 – 3400(OC)
DDR4 – 3466(OC)
DDR4 – 3600(OC)
DDR4 – 3733(OC)
DDR4 – 3866(OC)
DDR4 – 4000(OC)
DDR4 – 4133(OC)
DDR4 – 4266(OC)
DDR4 – 4400(OC)
DDR4 – 4500(OC)
DDR4 – 4600(OC)
Max. Memory Capacity
128GB
Audio
Audio
ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface
PCIe 3.0 (x16)
NVIDIA SLI Support
Not Supported
AMD CrossFire Support
2-Way CrossFire
Integrated Graphics
Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
DisplayPort 1.4
HDMI 1.4b
Internal Connectivity
Expansion Slots
1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
3 x PCIe 3.0 x1
2 x PCIe 3.0 x16
SATA Support
SATA3 / M.2
RAID Support via
Intel® SATA RAID 0/1/10/5
Storage Mode Support
Intel Optane Memory Ready
Intel Rapid Storage Technology Support
RAID 0
RAID 1
RAID 10
RAID 5
Internal I/O
1 x 24-pin (Power)
1 x 4-pin (Power)
1 x 4-pin AIO Pump Connector
3 x 4-pin CHA_FAN connector
1 x 4-pin CPU Fan Connector
1 x 4-pin CPU OPT Fan Connector
1 x 8-pin (Power)
1 x Aura Addressable Gen2 Header
2 x Aura RGB Strip Headers
1 x Clear CMOS Header
1 x Front Panel Audio Header
6 x SATA III – 6Gb/s
1 x Serial (COM) Header
1 x Thunderbolt header
2 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
802.11ax WiFi LAN
Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
1 x Intel (Gigabit LAN)
1 x Intel® I219V (Gigabit LAN)

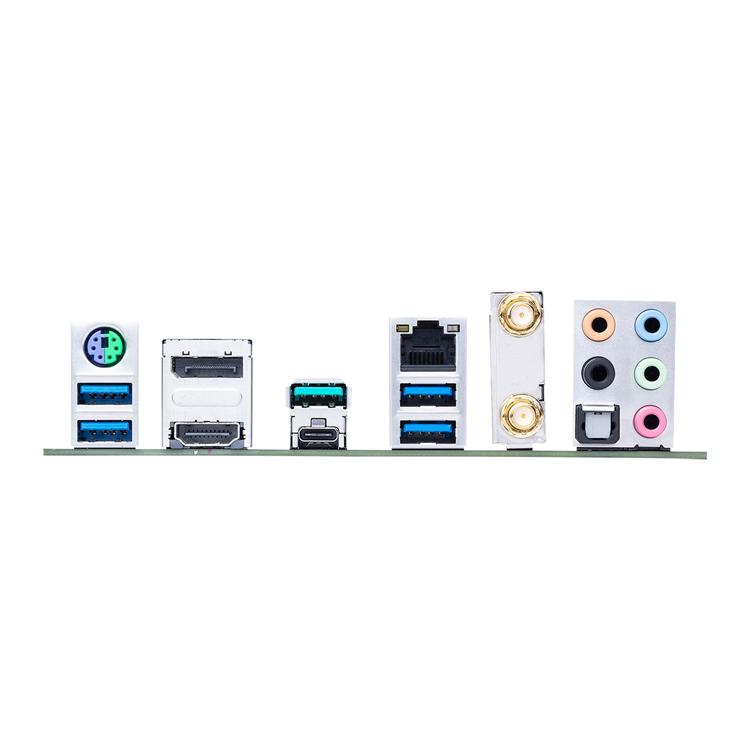

Rear I/O Connectors
1 x 10/100/1000 (LAN)
1 x 5.1 Audio I/O
1 x DisplayPort 1.4
1 x HDMI 1.4b
1 x PS/2 Keyboard/Mouse Combo
1 x S/PDIF-Out (Optical)
4 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled
No
Cooling
Passive Heatsinks
QPI Speed
N/A
Board Dimensions
305 x 244 mm
