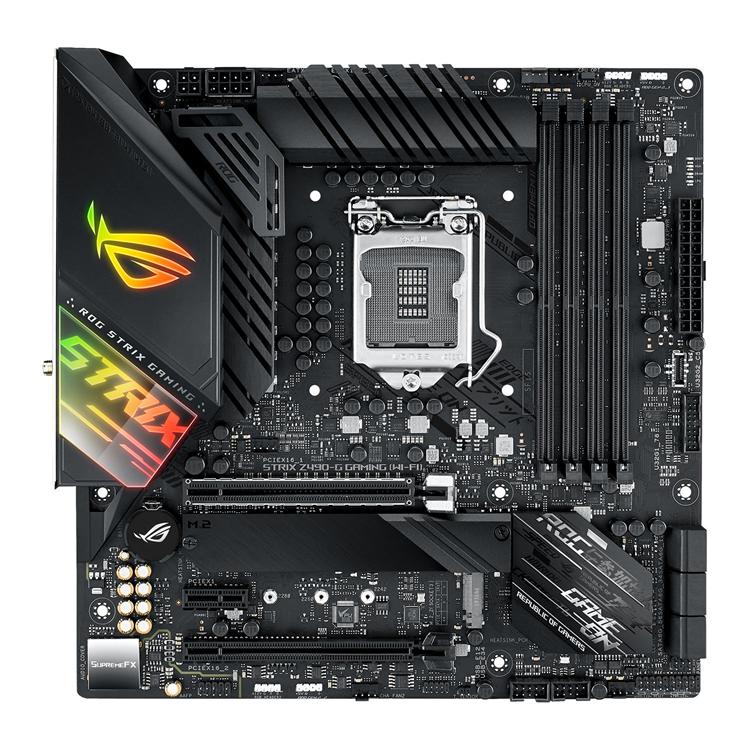

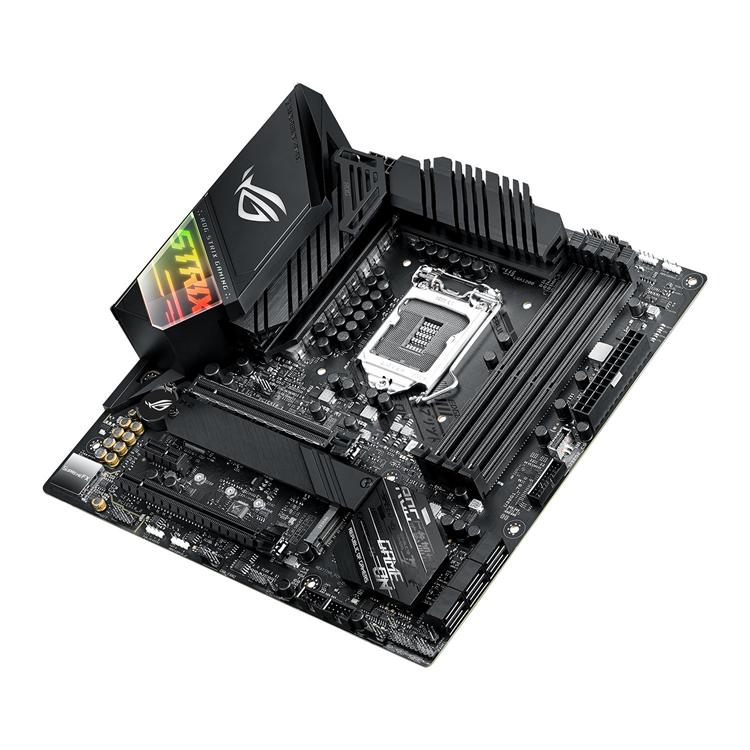

With boosted power delivery, an optimised cooling design and intuitive ROG software, the ASUS ROG STRIX Z490-G GAMING (WI-FI) Motherboard is perfect for your next gaming setup. The cyberpunk-inspired aesthetics and the mirrored stainless steel nameplate bring epic style to the motherboard. Get the most out of your gaming build with up-rated power delivery and optimised cooling. Intelligent controls allow you to manage overclocking, cooling and networking settings, giving you the power to harness the full potential of your build for top-tier gaming performance.
Intelligent Control
Get the most out of your build by automatically profiling your CPU with ROG AI Overclocking. ROG AI Overclocking works by predicting the optimal voltage and frequency settings. Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customisable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.
Cooling
With an expansive array of cooling options which can be configurable via Fan Xpert 4 or the UEFI Bios, rest assured your epic new motherboard will stay cool under pressure. Each components is kept cool, from the M.2 SSD via a heatsink, to the MOS heatsink which provides a large contact area for the MOSFETs and chokes. A high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink. ASUS AI Cooling function will automatically manage and control motherboard-connected fans to ensure optimal settings based on current system load and temperature.
Core Specifications
Edition
ROG STRIX Z490-G GAMING (Wi-Fi)
Form Factor
MicroATX
CPU Socket
1200
Chipset
Intel Z490
RAM Memory Support
Memory Type
DDR4
Memory Channel
Dual (2)
Memory Type (ECC)
Non-ECC
Memory Type (R/U)
UDIMM (Unbuffered)
Memory Speed (Mhz)
DDR4 – 2133
DDR4 – 2400
DDR4 – 2666
DDR4 – 2800(OC)
DDR4 – 2933(OC)
DDR4 – 3000(OC)
DDR4 – 3200(OC)
DDR4 – 3333(OC)
DDR4 – 3400(OC)
DDR4 – 3466(OC)
DDR4 – 3600(OC)
DDR4 – 3733(OC)
DDR4 – 3866(OC)
DDR4 – 4000(OC)
DDR4 – 4133(OC)
DDR4 – 4266(OC)
DDR4 – 4400(OC)
DDR4 – 4500(OC)
DDR4 – 4600(OC)
Max. Memory Capacity
128GB
Audio
Audio
ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface
PCIe 3.0 (x16)
NVIDIA SLI Support
Not Supported
AMD CrossFire Support
2-Way CrossFire
Integrated Graphics
Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
DisplayPort 1.4
HDMI 1.4b
Internal Connectivity
Expansion Slots
1 x M.2, 22-42/60/80, PCIe Gen3/SATA
1 x M.2, 22-42/60/80/110, PCIe Gen3x4
1 x PCIe 3.0 x1
2 x PCIe 3.0 x16
SATA Support
SATA3 / M.2
RAID Support via
Intel® SATA RAID 0/1/10/5
Storage Mode Support
Intel Optane Memory Ready
Intel Rapid Storage Technology Support
RAID 0
RAID 1
RAID 10
RAID 5
Internal I/O
1 x 24-pin (Power)
1 x 4-pin (Power)
2 x 4-pin CHA_FAN connector
1 x 4-pin CPU Fan Connector
1 x 4-pin CPU OPT Fan Connector
1 x 8-pin (Power)
2 x Aura Addressable Gen2 Header
2 x Aura RGB Strip Headers
1 x Clear CMOS Header
1 x CPU_OV jumper
1 x Front Panel Audio Header
6 x SATA III – 6Gb/s
1 x System Panel Connector with Chassis Intrusion
1 x Temperature Sensor Header
2 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
802.11ax WiFi LAN
Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
1 x Intel (2.5GbE LAN)
1 x Intel 802.11ax WiFi + BT5 Module

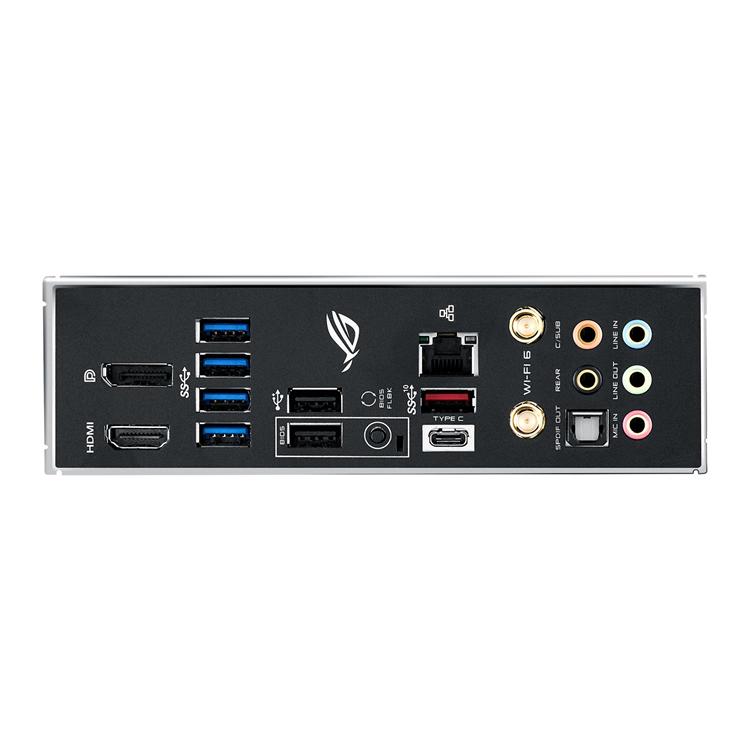

Rear I/O Connectors
1 x 10/100/1000/2500 (LAN)
1 x 5.1 Audio I/O
2 x Antenna Ports
1 x BIOS Flashback Button
1 x DisplayPort 1.4
1 x HDMI
1 x S/PDIF-Out (Optical)
Additional Specifications
Water Cooled
No
Cooling
Passive Heatsinks
QPI Speed
N/A
Board Dimensions
244 x 244 mm
Note
