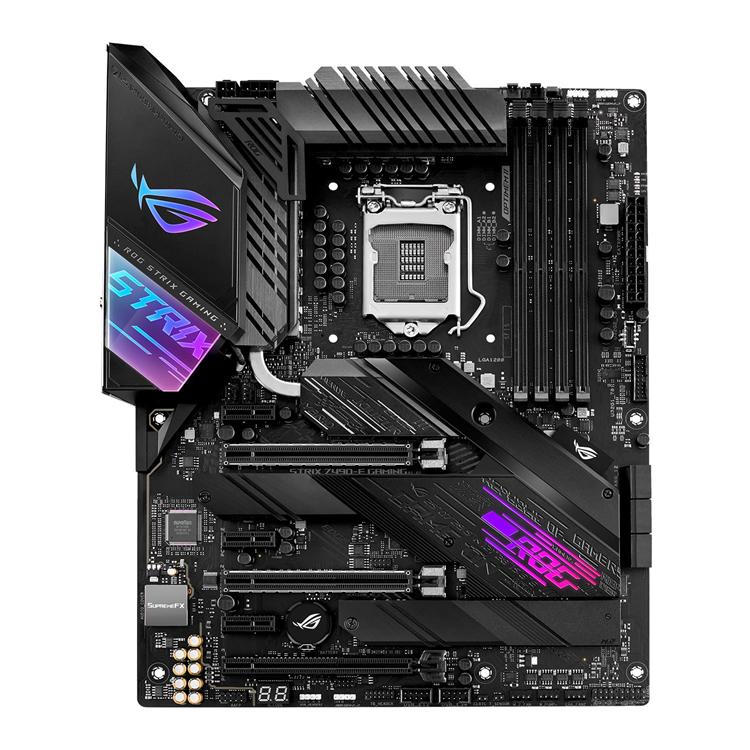

ASUS ROG STRIX Z490-E GAMING MOTHERBOARD

Key Features

  • Intel Socket 1200
  • Intel Z490 Chipset
  • 4x DDR4 Slots – up to 128GB
  • 6x SATA 6Gb/s | 2x M.2 Slot
  • 1 x DisplayPort | 1 x HDMI Port
  • ATX Form Factor

R7,426.00 Incl. Vat

SKU: ASUS ROG STRIX Z490-E GAMING Category: Tags: , , , , ,

Description

ASUS ROG STIRX Z490-E GAMING Motherboard

Designed to cope with the demands of 10th Gen Intel Core processors, the ASUS ROG STIRX Z490-E GAMING Motherboard features boosted power delivery and optimised cooling. With AI enhancements and intuitive dashboards, you can overclock and tweak various parameters easily. The cyberpunk-inspired aesthetics make the motherboard a gorgeous addition to your build. Digital power control and an array of power stages ensure Strix Z490-E Gaming has the muscle to control the latest Intel CPUs.

ROG Strix Z490-E Gaming provides you with the latest connectivity for supersmooth online experiences and super-fast file transfers. Superior audio performance gives you gaming advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience.

Cooling

With the most comprehensive cooling options ever, the ROG Strix Z490 is configurable via Fan Xpert 4 or the UEFI BIOS. A bundled fan bracket and additional MOS fan provide additional cooling to areas around the VRM as you push your build to its limits. Additional cooling support is provided thanks to the U-Shaped heatpipe for rapid heat transfer, and high-quality thermal pads to transfer heat from the inductor and phase array to the heatsink.

Core Specifications
Edition ROG STRIX Z490-E Gaming
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 – 2133
  • DDR4 – 2400
  • DDR4 – 2666
  • DDR4 – 2800(OC)
  • DDR4 – 2933(OC)
  • DDR4 – 3000(OC)
  • DDR4 – 3200(OC)
  • DDR4 – 3333(OC)
  • DDR4 – 3400(OC)
  • DDR4 – 3466(OC)
  • DDR4 – 3600(OC)
  • DDR4 – 3733(OC)
  • DDR4 – 3866(OC)
  • DDR4 – 4000(OC)
  • DDR4 – 4000+(OC)
  • DDR4 – 4133(OC)
  • DDR4 – 4266(OC)
  • DDR4 – 4400(OC)
  • DDR4 – 4500(OC)
  • DDR4 – 4600(OC)
Max. Memory Capacity 128GB
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 3 x PCIe 3.0 x1
  • 3 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin M.2_FAN connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS Header
  • 1 x CPU_OV jumper
  • 1 x Front Panel Audio Header
  • 1 x Q_Code
  • 6 x SATA III – 6Gb/s
  • 1 x System Panel Connector with Chassis Intrusion
  • 1 x Temperature Sensor Header
  • 1 x Thunderbolt header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
  • 1 x VRM Heatsink Fan Header
  • 1 x Water Pump+ Connector (4-Pin)
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel 802.11ax WiFi + BT5 Module

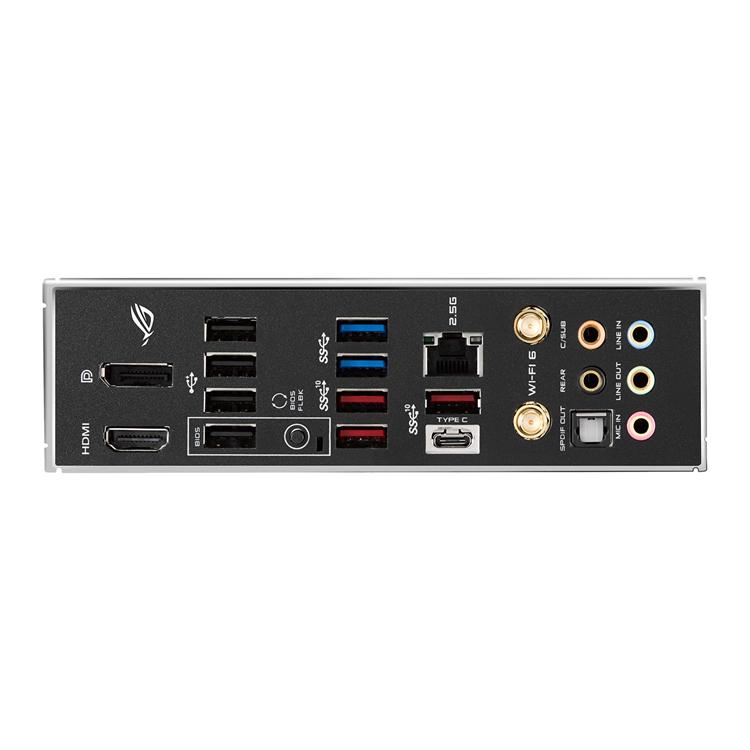

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 5.1 Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x BIOS Flashback LED
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 x 50 mm
