ASUS ROG STRIX X570-F GAMING MOTHERBOARD

Key Features

  • AMD Socket AM4
  • AMD X570 Chipset
  • 4x DDR4 Slots – up to 128GB
  • 8x SATA 6Gb/s | 2x M.2 Slot
  • 1 x DisplayPort | 1 x HDMI Port
  • ATX Form Factor
  • AMD CrossFireX

R6,521.00 Incl. Vat

SKU: ASUS ROG STRIX X570-F GAMING Category: Tags: , , , , ,

Description

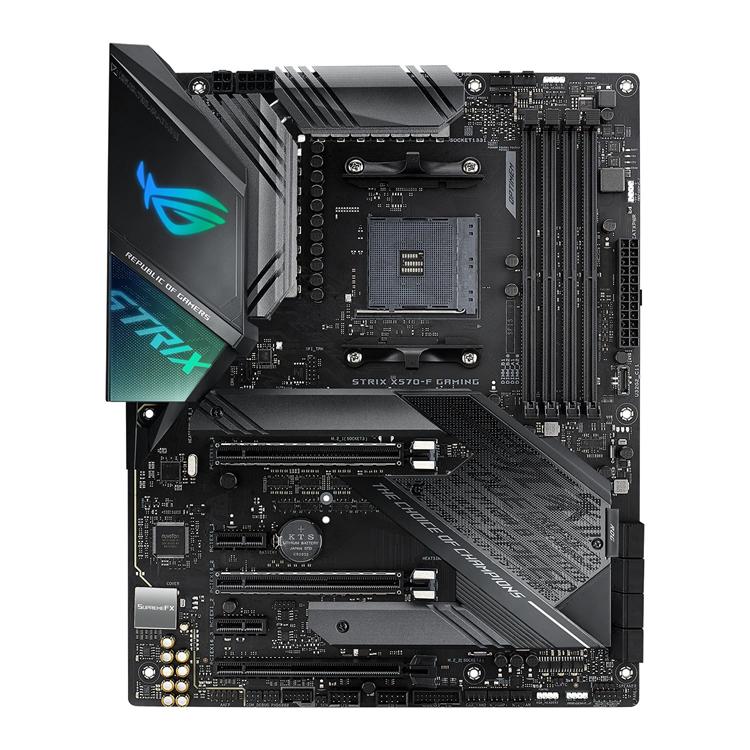

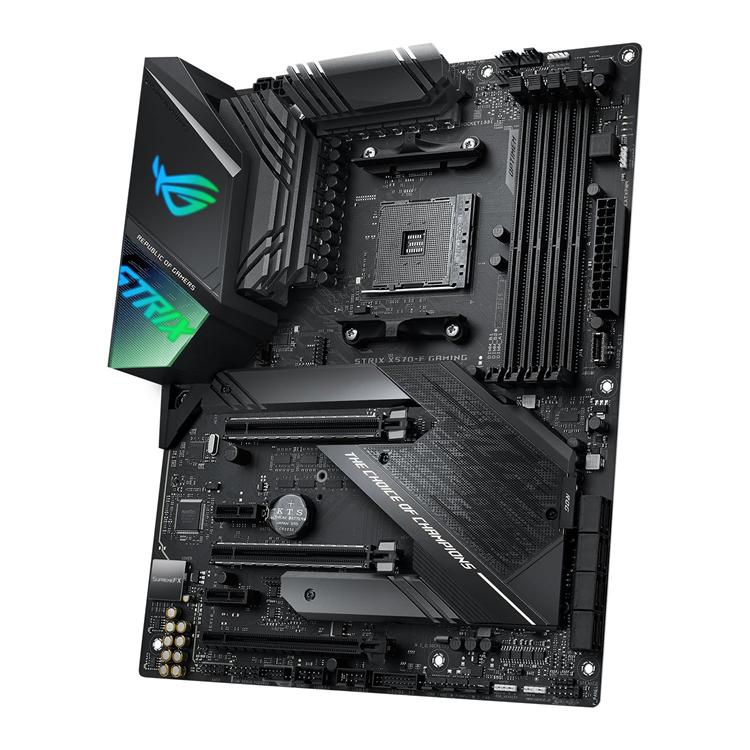

ASUS ROG Strix X570-F Gaming Ryzen 3rd Gen Motherboard

Built For the New 3rd gen RYZEN LineupThe ROG Strix X570-F Gaming motherboard delivers a fully fledged ROG experience with a compelling mix of features, comprehensive cooling options and undeniable style that provide the ideal foundation for building a powerful ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you need to build a formidable PC to rise above the rest.

Core Specifications
Edition ROG STRIX X570-F GAMING
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 – 2133
  • DDR4 – 2400
  • DDR4 – 2666
  • DDR4 – 2800
  • DDR4 – 2933
  • DDR4 – 3000
  • DDR4 – 3200
  • DDR4 – 3400(OC)
  • DDR4 – 3466(OC)
  • DDR4 – 3600(OC)
  • DDR4 – 3733(OC)
  • DDR4 – 3866(OC)
  • DDR4 – 4000(OC)
  • DDR4 – 4133(OC)
  • DDR4 – 4266(OC)
  • DDR4 – 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 8-Ch. HD Audio S1220A
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin M.2_FAN connector
  • 1 x 4-pin PCH_FAN Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 2 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x NODE connector
  • 8 x SATA III – 6Gb/s
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)

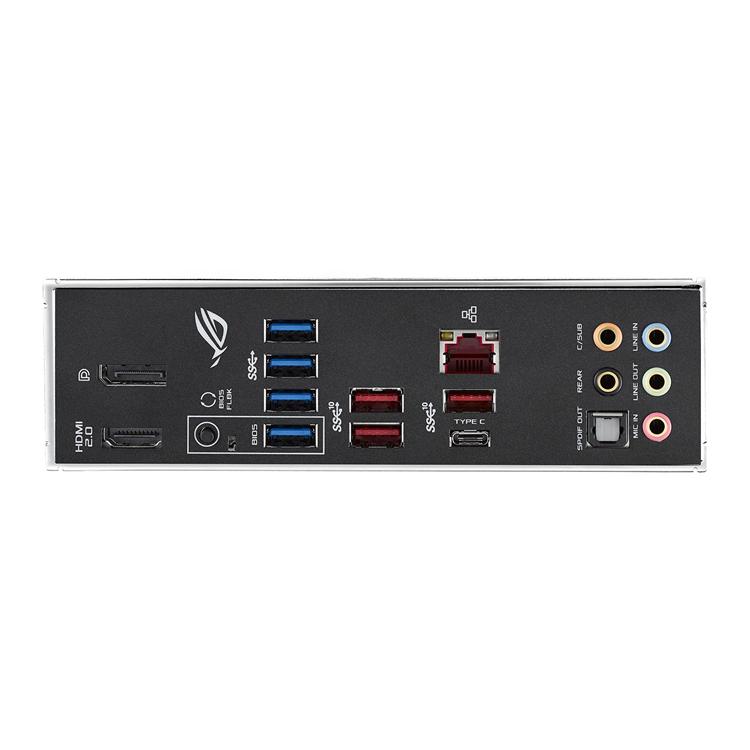

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x BIOS Flashback LED
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 2.0b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-A (BIOS Flash)
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
