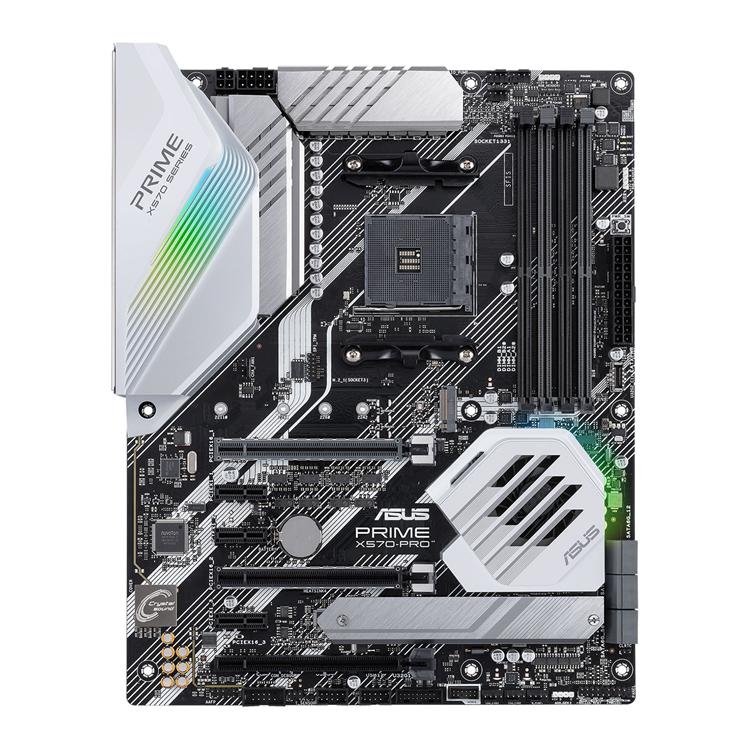

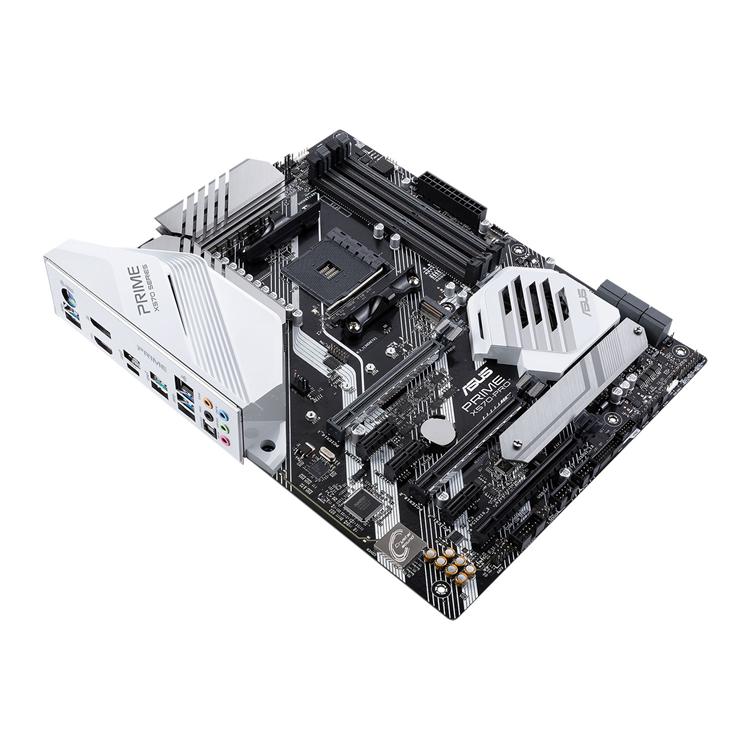

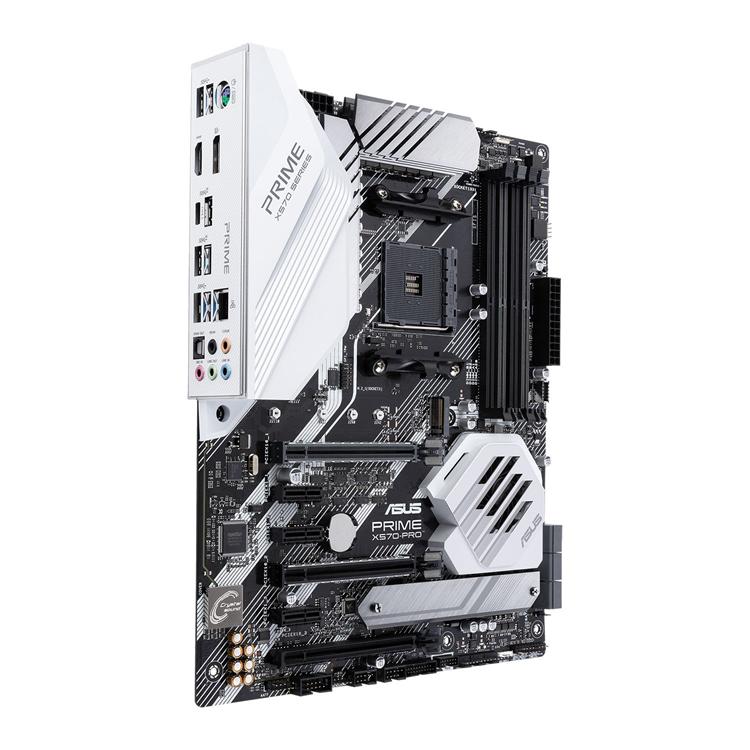

ASUS PRIME X570-PRO MOTHERBOARD

Key Features

  • AMD Socket AM4
  • AMD X570 Chipset
  • 4x DDR4 Slots – up to 128GB
  • 6x SATA 6Gb/s | 2x Gen4 M.2 Slot
  • 1 x DisplayPort | 1 x HDMI Port
  • ATX Form Factor
  • AMD CrossFireX

R6,460.00 Incl. Vat

SKU: ASUS PRIME X570-PRO Category: Tags: , , , , ,

Description

ASUS PRIME X570-Pro AMD Ryzen ATX Motherboard

Get incredible power with the new Ryzen CPUsDressed in a professional attire, the Prime X570 series caters to users with serious pursuits of demanding tasks such as video editing, photo manipulation and other various content creation, something to put the Ryzen processors to more productive use. Prime X570, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance. Hosting the latest Ryzen processor with increased number of cores and bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling and flexible transfer options. It provides all the fundamentals to increase your everyday productivity especially when paired with the brand new Ryzen CPUs.

Core Specifications
Edition PRIME X570-PRO
Form Factor ATX
CPU Socket AM4
Chipset AMD X570

https://www.rebelgaming.co.za/wp-admin/media-upload.php?post_id=20626&type=image&TB_iframe=1

RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 – 2133
  • DDR4 – 2400
  • DDR4 – 2666
  • DDR4 – 2800
  • DDR4 – 2933
  • DDR4 – 3000
  • DDR4 – 3200
  • DDR4 – 3400(OC)
  • DDR4 – 3466(OC)
  • DDR4 – 3600(OC)
  • DDR4 – 3733(OC)
  • DDR4 – 3866(OC)
  • DDR4 – 4000(OC)
  • DDR4 – 4133(OC)
  • DDR4 – 4266(OC)
  • DDR4 – 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio + Crystal Sound 3
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 3 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 4-pin PCH_FAN Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 1 x Aura Addressable Gen2 Header
  • 2 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x NODE connector
  • 1 x Power button
  • 6 x SATA III – 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel connector
  • 1 x T_Sensor Connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x HDMI 2.0b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
